Ultrasonic Rotary Tube Sealing Machine

Seal Your Plastic and Laminated Tubes with Ease

The semi-automatic rotary tube sealing machine is used for sealing of plastic and laminated tubes. This machine achieves higher output through the use of a rotary table and automatic sealing features.

Key Feautres:

  • The machine is constructed from high quality 304 stainless steel

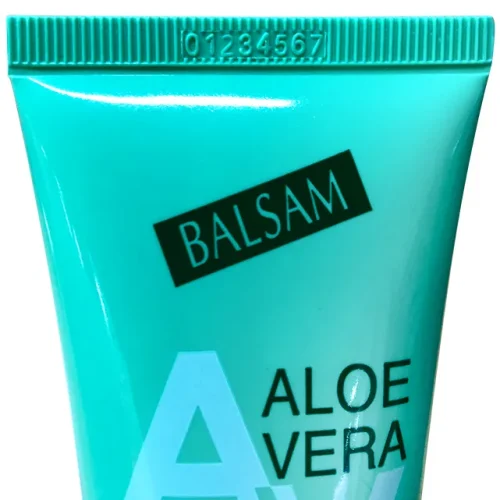

  • Automatic tube orientation, sealing with coding, trimming and ejection
  • Output of up to 25 tubes per minute
  • PLC for controlling sealing parameters
  • Ultrasonic sealing technology
  • Compact footprint
hx006d_tube_sealing_machine

Tube Sealer in Action

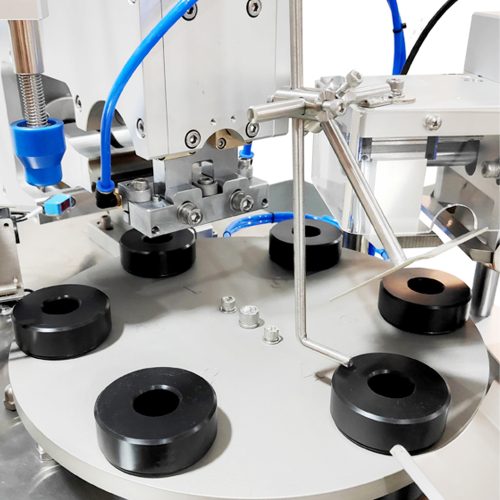

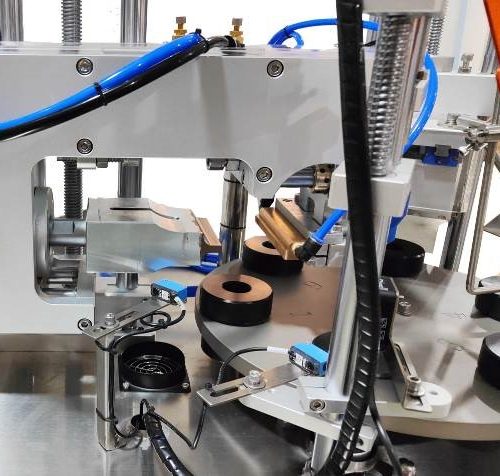

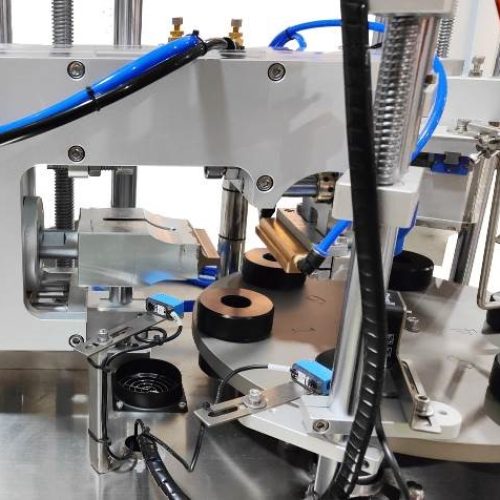

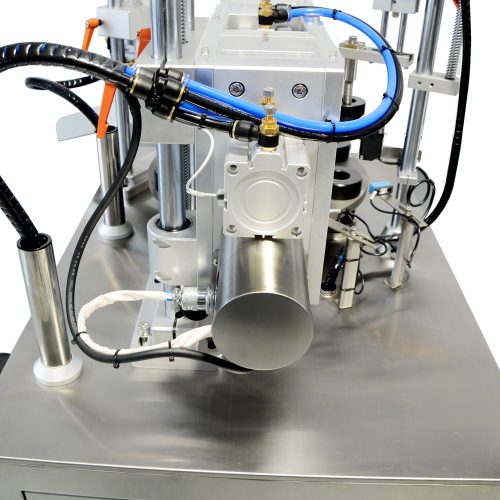

Gallery

The Ultrasonic Tube Sealing Machine comes with:

  • Cam indexing for precise positioning¬†
  • 20kHz ultrasonic sealer
  • PLC to control sealing parameters

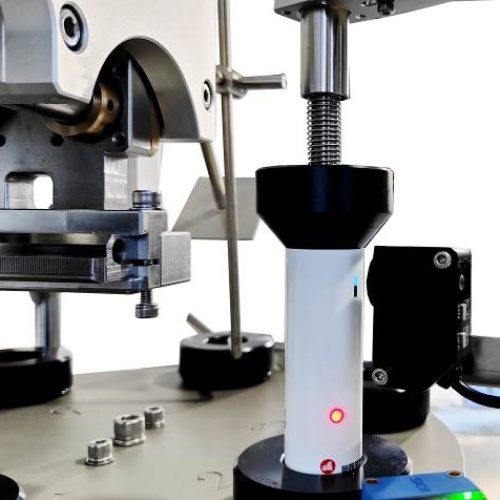

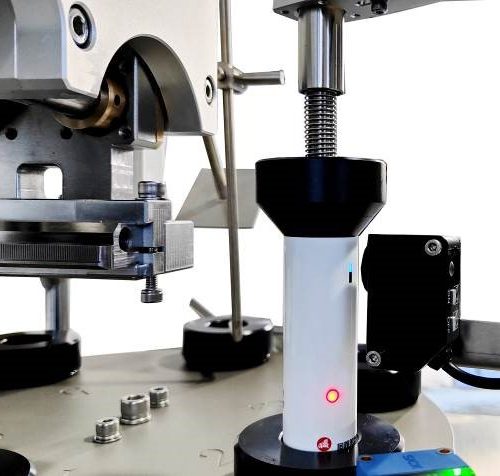

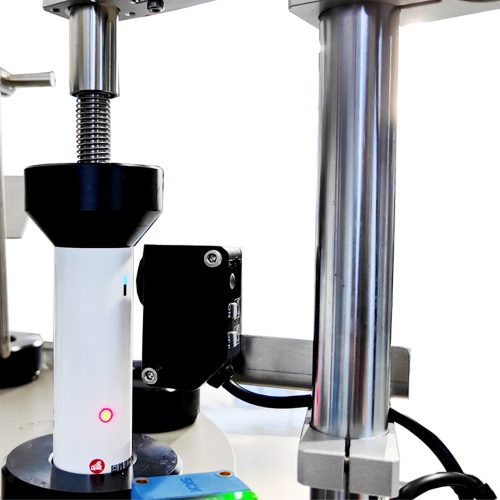

  • Panasonic laser for automatic tube orientation
  • Automatic trimming station
  • Automatic ejection feature

Technical Specifications:

  • Frequency: 20kHz
  • Power: 2600W
  • Voltage: 220V 50/60Hz
  • Tube Height: 50-250mm
  • Tube Diameter: 10-50mm
  • Output: 18-25 pcs/min
  • Air Consumption: 12 CFM
  • Dimensions: 31.5X39.4X45.3″
  • Net Weight: 452lbs
